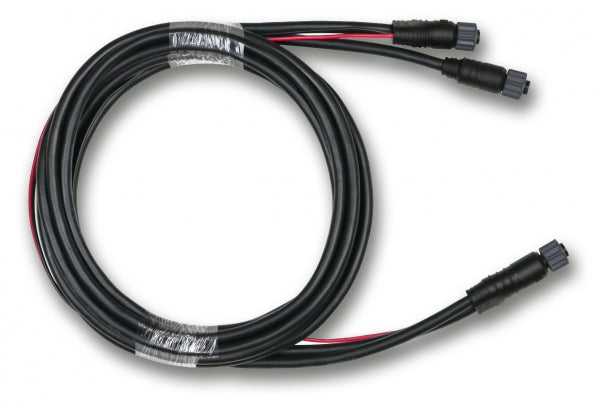

CZone 3 Module Smart Harness 5M (80-911-0172-00)
The 80-911-0172-00 is a 5-meter pre-engineered Smart Harness assembly designed to simplify CZone NMEA 2000 network backbones by consolidating power distribution and signal routing for up to three CZone modules into a single, streamlined cable run. By incorporating three factory-molded drop connectors directly into a single $5\text{-meter}$ main trunk, this Smart Harness replaces multiple standalone backbone tees, drop cables, and individual power taps.
CZone utilizes the industry standard NMEA2000 Network for its communication protocol. The new 3 Module Smart Harness replaces the need for a complete network backbone in a small system, meaning a robust, simpler and more cost-effective installation. The Smart Harness can also be fitted independent to any CZone installation where a small network comprising 3 devices is required.
Key Features
-
Consolidated Installation: Replaces standard tee connectors and individual drop cables with a single, factory-tested wiring assembly.
-
Reduced Connection Failure Points: Over-molded connector junctions prevent pin corrosion, loose threads, and moisture ingress in humid marine compartments.
-
High-Flex Tinned Copper Conductors: Resists internal wire strand fatigue from engine vibration while offering low resistance power and signal delivery.
-
Integrated Dual-Layer Shielding: Foil and braided wire shielding prevent RF noise and electromagnetic interference from neighboring high-current DC or AC cables.
-
Plug-and-Play Compatibility: Standard Micro-C interfaces ensure seamless integration with all CZone interface modules and standard NMEA 2000 devices.
Note: Not to be added to an NMEA2000 Network. The Smart Harness contains internal network terminations and will compromise a standard backbone.
