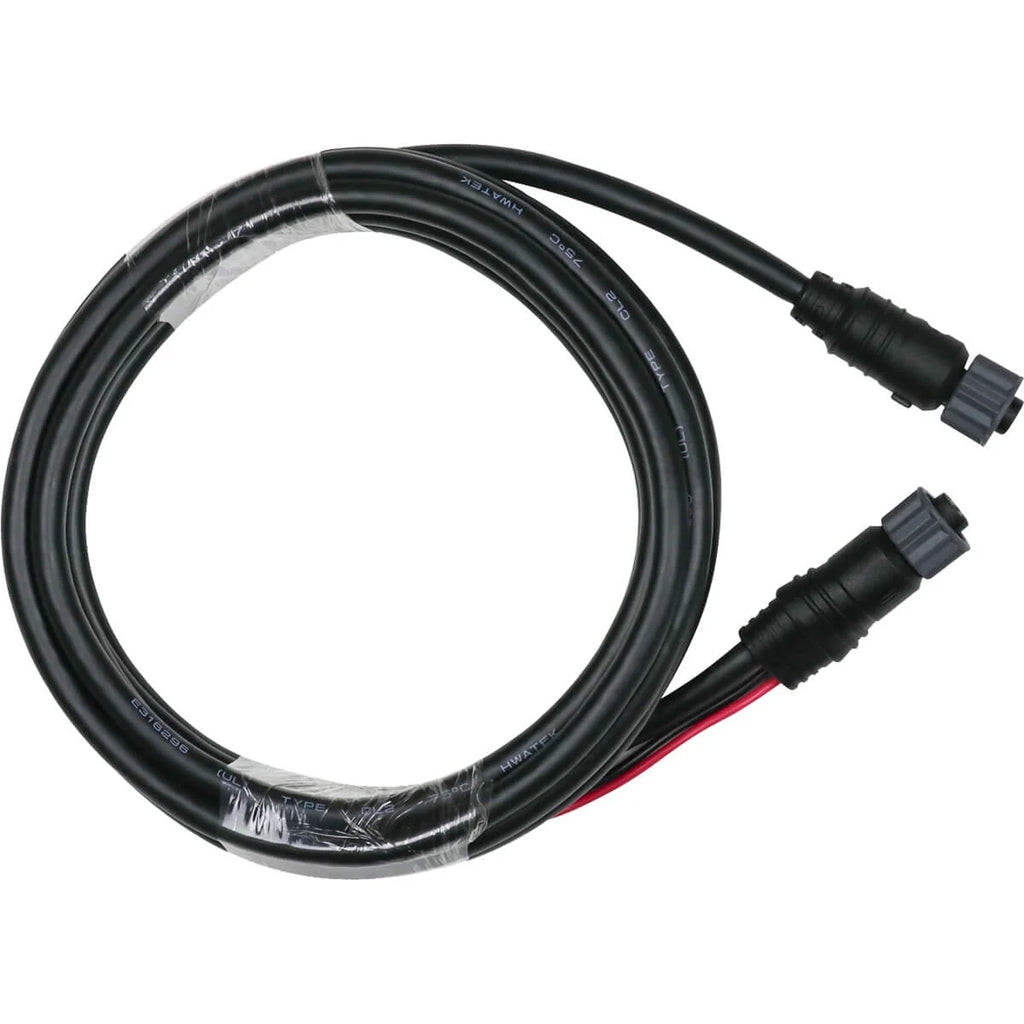

2 Module Smart Harness 3 Metre (80-911-0171-00)
The 80-911-0171-00 is a 3-meter marine-grade 2-module smart harness engineered to connect two CZone digital switching modules directly into a simplified NMEA 2000 network structure. Designed with built-in network terminating resistors, this smart harness eliminates the need for separate NMEA 2000 backbone cables, T-connectors, and standalone terminators when wiring small or localized two-module digital switching layouts.
Featuring factory-molded Micro-C connectors and double-shielded CAN bus cabling, the harness delivers high-speed data transmission between modules while protecting against electrical noise, moisture, and engine room vibration.
- All in one smart-harness for straight forward plug and play installation.
- 2 Module Smart Harness connects one 6-button Waterpoof Keypad to the Contact 6 PLUS Module

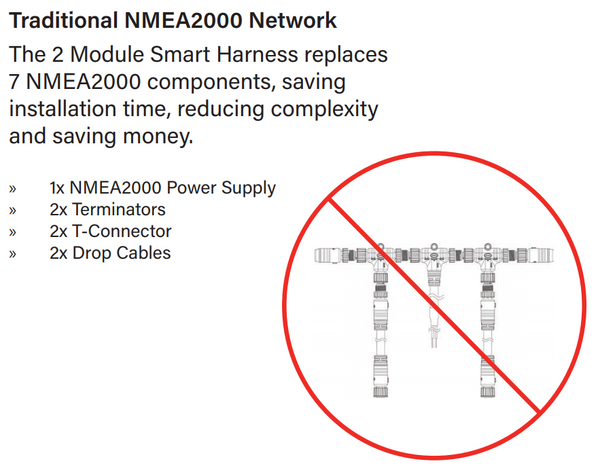

- No T-Connectors and Terminators required to install
- Saves time and money on installations
Note: Not to be added to an NMEA2000 Network. The Smart Harness contains internal network terminations and will compromise a standard backbone.
