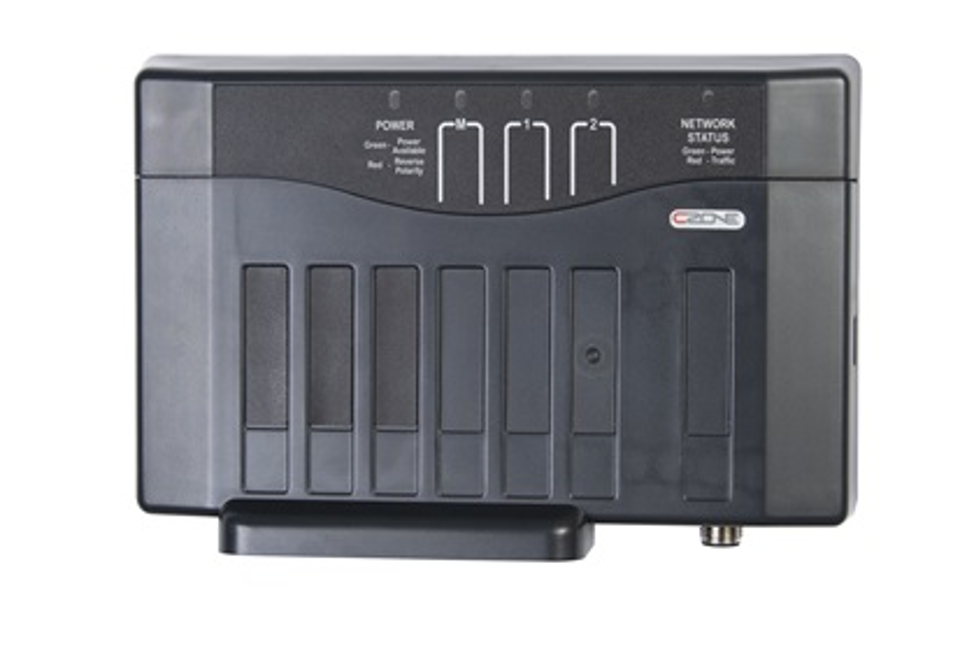

CZone Motor Output Interface (MOI) Without Connector (80-911-0008-00)

The 80-911-0008-00 is a replacement main processing unit for the CZone Motor Output Interface (MOI). Supplied without the output plug connector, terminal hardware, or flexible wire boot, this core module allows technicians to swap out a compromised or damaged MOI electronics block while reusing the existing wiring loom and seal boot on the vessel.

The Motor Output Interface has an output pair for controlling DC motors which require a reversal of polarity to change the direction of their mechanical operation. For example, a DC motor for an electric window mechanism will move the window up or down depending on the polarity of the feed to the motor. The Motor Output Interface also incorporates two standard output channels as found on the Output Interface.

Key Features

• Cost-Effective Service Core: Replaces damaged internal processing electronics without requiring the purchase of redundant connector harnesses or boots.

• Integrated Solid-State H-Bridge Control: Provides forward, reverse, and electronic braking for DC motors, replacing mechanical reversing relays.

• Programmable Current Sensing: Real-time motor current monitoring allows dynamic stall detection and over-current shut-off to protect motor windings and actuators.

• Manual Override Capability: Includes physical bypass controls for emergency circuit activation during troubleshooting or loss of network communication.

• Direct NMEA 2000 / CZone Integration: Directly responds to CZone keypad inputs, touchscreen controls, and automated digital switching logic.

Note: High and low alarm levels can be set for all inputs.
