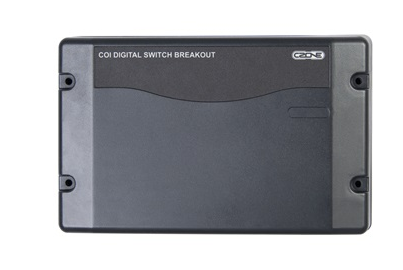

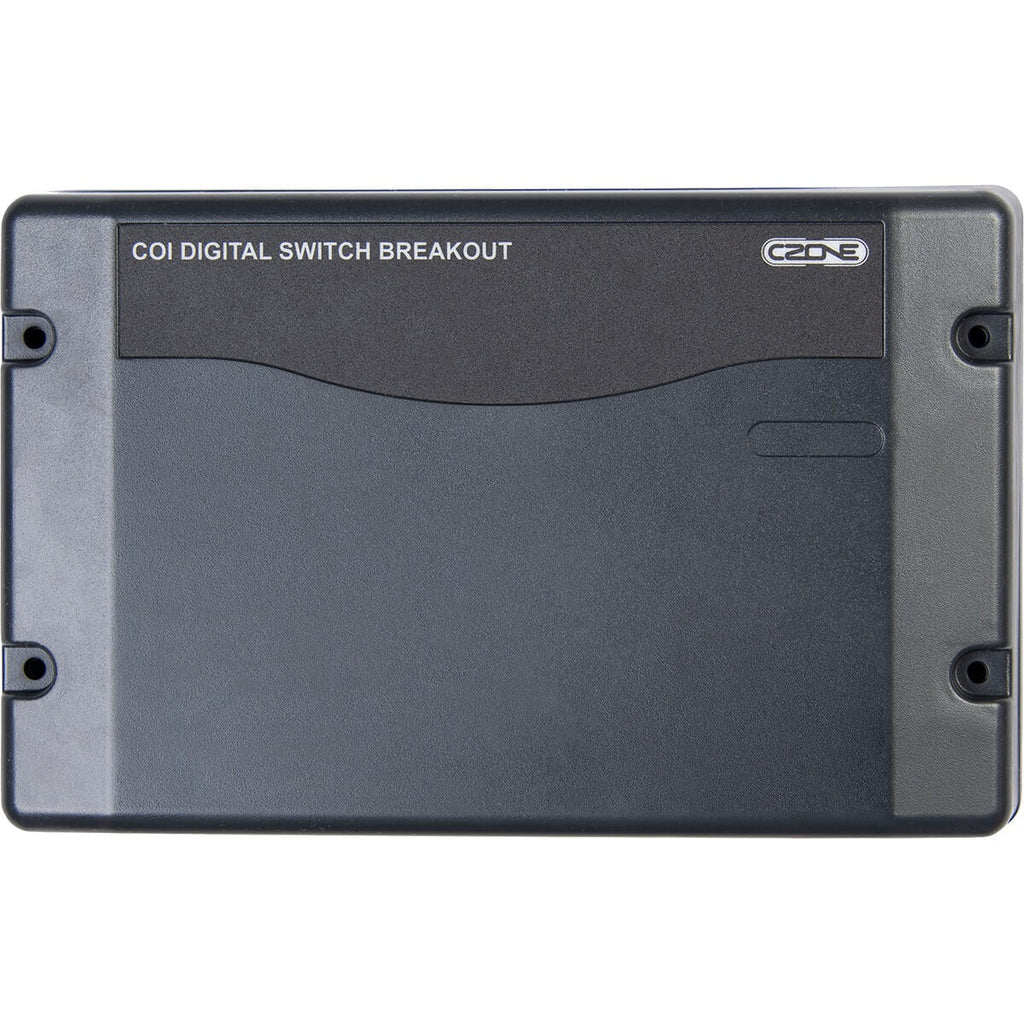

COI Digital Switch Breakout (DSB) (80-911-0134-00)
The 80-911-0134-00 Digital Switch Breakout (DSB) is an essential wiring interface module designed to simplify the connection of physical momentary push buttons, rocker switches, and analog switch inputs to the CZone Control & Output Interface (COI). By serving as a centralized, organized breakout junction, the DSB eliminates complex wire harnesses and tight crimping points, allowing clean multi-conductor wiring runs between helm panels and the primary COI module.
Engineered specifically for marine dash panels and commercial vehicle control consoles, the COI DSB converts individual digital switch signal lines into a single streamlined plug-and-play harness. Manufactured with rugged, marine-grade terminal blocks and environmental protection, it ensures reliable signal transmission free from corrosion or loose connection faults under high vibration.
Features
- Connect up to 6 digital switches to the COI.
- Support for single or double throw switches (up to 12 programmable switch points).
- Uses existing SCI switch cables with options for Rocker or push button plugs at various lengths.
- Digital switches include dimmable backlighting for ‘systems on’ and fault codes.
- IPx5 water ingress protection.
- Including 2 mtr DSB to COI cable.
