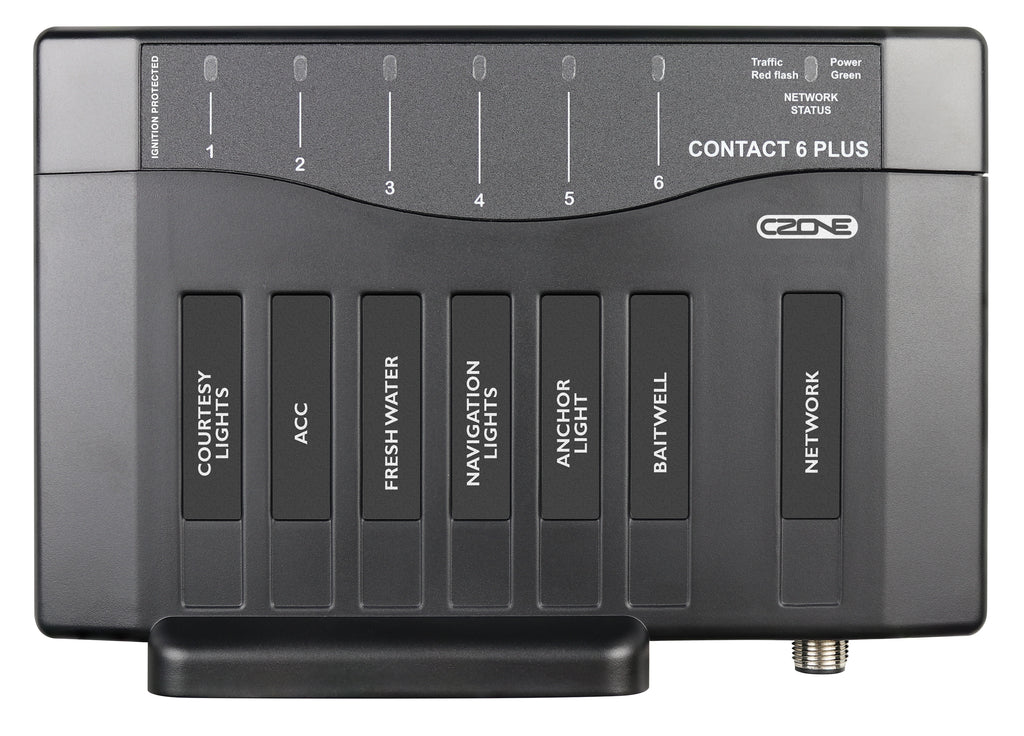

CZone 80-911-0161-00 Contact 6 Plus w/Bilge Sense + Seal and Connector

This product has been upgraded by the manufacturer to include a Bilge Monitoring Sensor. The prior part number is 80-911-0160-00. The 80-911-0161-00 is the same product but with upgraded Bilge sensing for the same price

The CZone Contact 6 Plus Module offers the most cost-effective and straight forward solution for integrating digital switching into your NMEA system. It doubles as a fuse/override box, supporting up to 6 outputs and connecting directly to a CZone waterproof Keypad or an entire NMEA2k network with minimal installation and parts.

Designed for convenience, the fuses are easily accessible under a snap-on cover. The module shares premium features with the COI, including mechanical fuse bypassing and tripped fuse detection and alarm.

This version of the Contact 6 Plus includes the load cable connector, seal/cable gland, and front cover.

A USB Interface tool is strongly recommended for programing

Features:

Supports 6x 15A Outputs with optional paralleling for higher current applications.
Combines the benefits of digital switching, with easy fuse access and emergency load control
Manual Override Protection: Pull Fuses to force off or them into the top 2 notches forces loads on
Compatible with 100Hz PWM cycling, allowing adjustable power to loads, (ideal for dimming lights).
Compact and versatile, designed for seamless integration into CZone and NMEA systems, with blown fuse alarms.
Functions as a standalone digital switching system(with optional CZone Waterproof Keypad and Smart Harness) and requires minimal wiring
Simple installation and replacement- no crimping required.
Bilge Sensor is a new feature to this module.

Specifications:

Nominal Power supply voltages(at the stud): 12/24V
Operating + Power supply voltage: 9-32V
Fuse Type: ATC
8x High Current Outputs: 15A (supports PWM)
Comes with: Contact 6 Plus module, Output Connector, Cable Grommet, Top Cover
Maximum Continuous Current: 60A total
Certification: CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected
Ingress Protection: IPx5
Operating Network supply voltage (NMEA2k power): 9-16V
NMEA2k Power Consumption:
maximum of 75mA @12V
0.3mA @12V(standby)
Operating Temperatures: -15 °C to 55°C
Storage Temperature(nonoperational): -40 °C to 85°C
Alarms(shown in CZone): Fuse Tripped

Installation Detail:

The Masterbus and CZone USB interface, as well as the CZone configuration tool(software) is needed to update firmware for the Contact 6 Plus.

Allowed Power cable Rating: 0.5 -6 mm (24 AWG- 8AWG)
Power supply stud: M6 (1/4")

Output channels can be paralleled to increase current past 15A, up to 60A for the whole module

Mounting screws (NOT included): 4x 4mm or 5mm (8G or 10G) self-tapping screws or bolts

Printable Mounting template and instructions found here:
https://images.mastervolt.nl/files/Contact6Plusinstallationguide.pdf

Use a sufficient cable to be able to handle the maximum amperage of all the loads, and a properly chosen fuse to protect the cable (rule of thumbs is the fuse should be rated for 80% of the wire's continuous rating)

The ATC fuse chosen should be appropriately rated for each individual load.

Pelagic Power Tip:

The CZone Contact 6 Plus is a game-changer for marine digital switching systems. It’s a low-cost, maintenance-friendly switching interface that integrates seamlessly into NMEA2k networks, making it ideal for both OEMs and end-users. Whether you're upgrading an existing system or adding a few extra outputs, this compact module delivers high amperage, easy installation, and manual override protection—all in one package.

Always keep a backup Contact 6 Plus module for critical systems. In case of failure, swapping out a module is as easy as matching the DIP switch settings and plugging it in. This ensures minimal downtime and keeps your vessel’s systems running smoothly. The CZone Contact 6 Plus is the most cost-effective and straightforward way to bring digital switching into your NMEA system. Its versatility, ease of installation, and manual override capabilities make it a must-have for both new builds and retrofits.

Upgrade your switching system today and experience the simplicity and reliability of CZone!
