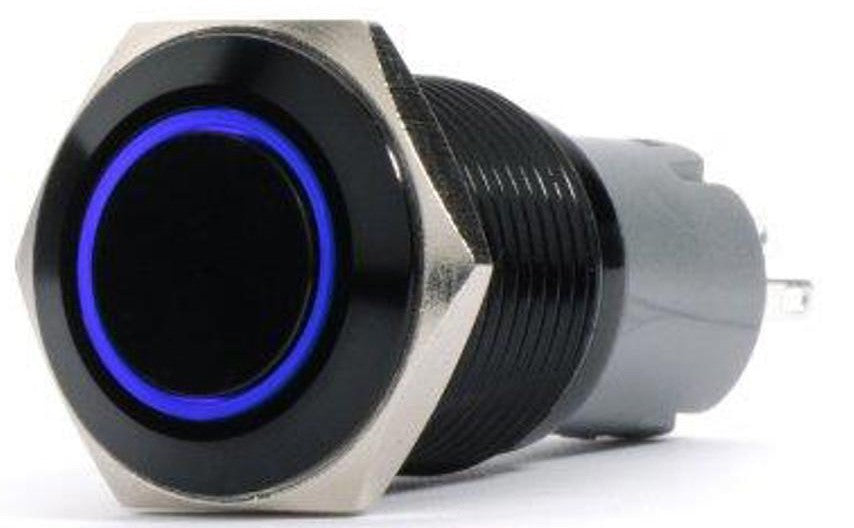

Push Button Switch Momentary (ON) / OFF 3.3V Blue LED - Black Housing (M-BLU-CZ-BLK)
The M-BLU-CZ-BLK is a sleek, marine-grade momentary push button switch designed for low-voltage signal triggering, digital switching inputs, horn activation, and momentary load control across marine consoles and custom helm panels. Operating on a Momentary (ON)/OFF circuit configuration, this switch connects the circuit only while actively depressed, automatically returning to the open OFF position upon release.
Finished with an anodized Black Composite/Metal Housing, the switch features an integrated 3.3V Blue LED ring that provides clear, modern visual status illumination. Designed to interface directly with low-voltage logic controllers, CZone digital switching modules, and 3.3V bus systems, it features an IP67 sealed front panel to ensure long-term durability in high-moisture marine environments.
Key Features
-
Momentary (ON) / OFF Mechanism: Spring-return actuator ensures connection only during active button depression.
-
Low-Voltage 3.3V Blue LED: Bright blue ring illumination engineered specifically for 3.3V logic supply rails and digital interfaces.
-
Tactile Actuation: Crisp, positive spring feel provides clear operator feedback under heavy marine conditions.
-
IP67 Waterproof Front Seal: Precision elastomeric seals safeguard internal electrical contacts against high-pressure washdowns, rain, and salt mist.
-
Corrosion-Resistant Black Finish: Durable black bezel and housing blend seamlessly into modern black-glass helm layouts.
