CZone 12 Way Waterproof Keypads – Landscape (80-911-0164-00) & Portrait (80-911-0165-00)

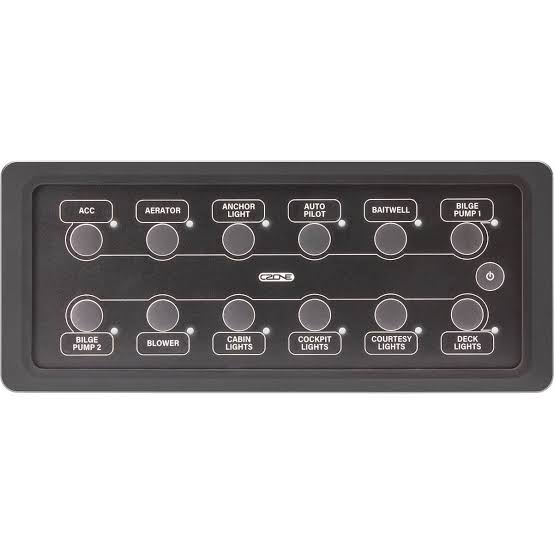

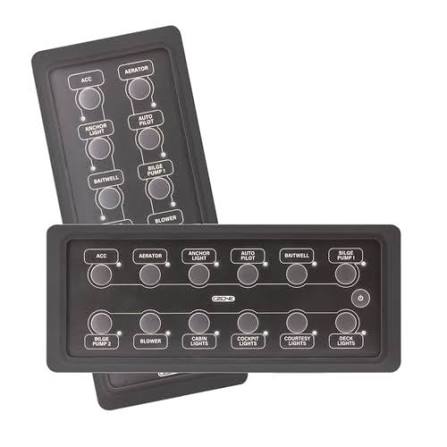

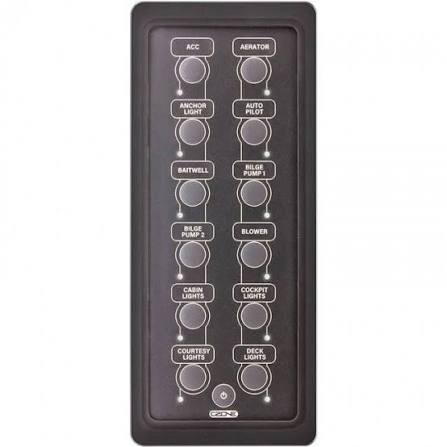

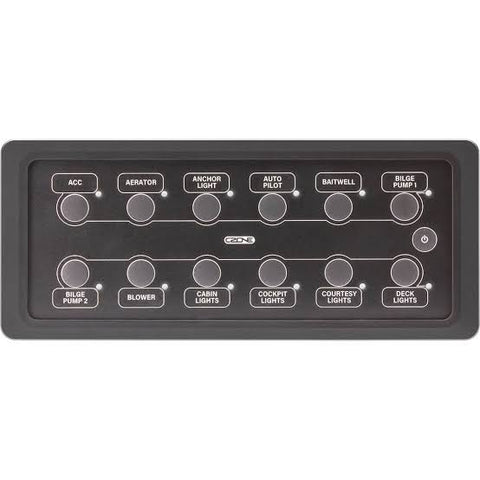

The CZone 12 Way Waterproof Keypads deliver high-density digital control for modern marine dashboards, flybridges, and mobile electrical consoles. Available in both Landscape (80-911-0164-00) and Portrait (80-911-0165-00) orientations, these low-profile keypads allow boaters and vehicle operators to trigger up to 12 individual load circuits, digital switching modes, or macro system commands over a single NMEA 2000 network cable.
Engineered to operate in open cockpits and exposed helm stations, each keypad features an IPX7 submersible rating, dimmable RGB LED circuit backlighting, and positive tactile push-button feedback. Built for effortless panel mounting, the keypads drastically simplify dashboard wiring by eliminating heavy multi-wire harness clusters behind the console.
- IPX7 submersible
- Circuit in operation LED's with blown fuse fault indication
- Dimmable RGB circuit backlighting
- Low profile with 3 mounting options - front, rear and flush mount
- Easy hole saw installation with single plug connection
Add a keypad to an existing CZone NMEA network to control other CZone interfaces.
Combine Contact 6 Plus with the Waterproof Keypad and Smart Harness to achieve a very affordable digital switching system. Simple installation with out-of-the box plug-and-play configurations, the Contact 6 Plus System brings powerful and trusted CZone digital switching technology to a very attractive price point.
- IPX7 waterproof keypads
- Circuit in operation LED’s with blown fuse fault indication
- Dimmable RGB circuit backlighting
- Low profile with 3 mounting options
- Easy hole saw installation with single plug connection
- Simplified installation with built-in ignition protected fuse panel
- Single cable installation behind dash
- Circuit dimming & smooth start effects
- Status LED’s for all outputs
- Ultra low current draw
- Built in timer functions for circuits like live bait tanks
- Time of day switching when GPS time on network
- Voltage monitoring on the NMEA2000 network with load shedding
- Default factory configuration allows plug and installation with simple on-to-one circuit mapping
- Affordable add on module to larger CZone systems
- Blown fuse detection and warning
- Customized overlays for Keypads
View CZone Contact 6 Plus Networked Bundles & Save 10%
Specifications
| General specifications | ||
| NMEA 2000 connectivity | 1 x CAN Micro-C port | |
| Interface | keypad | |
| Backlight color | RGB LED with dimming | |
| Supply voltage | 9-16 V via CAN | |
| Mounting | front and rear mount | |
| Protection degree | IPx7 | |
| Dimensions, hxwxd | 107 x 77 x 32 mm 4.2 x 3.0 x 1.3 inch |
|
| Weight | 0.115 kg 0.3 lb |
|
| Compliance | CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected | |
| Technical specifications | ||
| Power consumption | max. 56 mA / standby 1.8 mA | |
| Temperature range (ambient temp.) | -15 °C to 55 °C 5 °F to 131 °F |
|
| Temperature range (storage/non operating) | -40 °C to 85 °C -40 °F to 185 °F |
|
