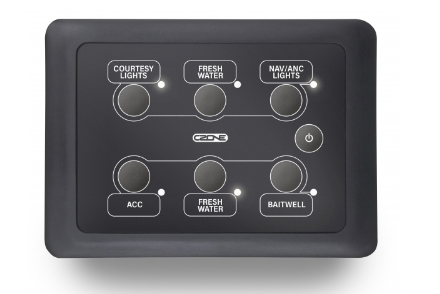

CZone 6 Way Waterproof Keypads
80-911-0162-00 Landscape | 80-911-0163-00 Portrait
Combine Contact 6 Plus with the Waterproof Keypad and Smart Harness to achieve a very affordable digital switching system.
Alternatively add a keypad to an existing CZone NMEA network to control other CZone interfaces.
View CZone Contact 6 Plus Networked Bundles & Save 10%
Contact 6 Plus Systems
Simple installation with out-of-the box plug-and-play configurations, the Contact 6 Plus System brings powerful and trusted CZone digital switching technology to a very attractive price point.
- IPX7 waterproof keypads
- Circuit in operation LED’s with blown fuse fault indication
- Dimmable RGB circuit backlighting
- Low profile with 3 mounting options
- Easy hole saw installation with single plug connection
- Simplified installation with built-in ignition protected fuse panel
- Single cable installation behind dash
- Circuit dimming & smooth start effects
- Status LED’s for all outputs
- Ultra low current draw
- Built in timer functions for circuits like live bait tanks
- Time of day switching when GPS time on network
- Voltage monitoring on the NMEA2000 network with load shedding
- Default factory configuration allows plug and installation with simple on-to-one circuit mapping
- Affordable add on module to larger CZone systems
- Blown fuse detection and warning
- Customized overlays for Keypads
Specifications
| General specifications | ||
| NMEA 2000 connectivity | 1 x CAN Micro-C port | |
| Interface | keypad | |
| Backlight color | RGB LED with dimming | |
| Supply voltage | 9-16 V via CAN | |
| Mounting | front and rear mount | |
| Protection degree | IPx7 | |
| Dimensions, hxwxd | 107 x 77 x 32 mm 4.2 x 3.0 x 1.3 inch |
|
| Weight | 0.115 kg 0.3 lb |
|
| Compliance | CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected | |
| Technical specifications | ||
| Power consumption | max. 56 mA / standby 1.8 mA | |
| Temperature range (ambient temp.) | -15 °C to 55 °C 5 °F to 131 °F |
|
| Temperature range (storage/non operating) | -40 °C to 85 °C -40 °F to 185 °F |
|
Downloads:
CZone Waterproof Keypad Datasheet
CZone Contact 6 Plus System Datasheet
CZone Contact 6 Plus Dimensions
CZone Contact 6 Plus Installation Manual
